# Web Applications

Tracy features a range of companion web applications hosted at https://www.gear-genomics.com for browsing trace alignments, inspecting variant calls or patching reference sequences. The web apps consist of teal (trace browser), sage (trace alignment), indigo (trace decomposition and variant calling), pearl (patching a reference sequence using trace information), sabre (multiple trace alignment viewer) and the Wily-DNA-Editor (sequence editor).

# Teal

Teal is a simple viewer for Sanger chromatogram traces. The input tab of Teal requires a chromatogram trace file in scf, abi, ab1 or ab format. The Launch Analysis button kicks off tracy and the results are visualized in a separate browser tab. At the top, Teal shows the trace signal. The navigation buttons on the top left side can be used to move the actual view and zoom in or out. The buttons on the top right side highlight a base of choice. The chromatogram sequence is provided below the trace signal.

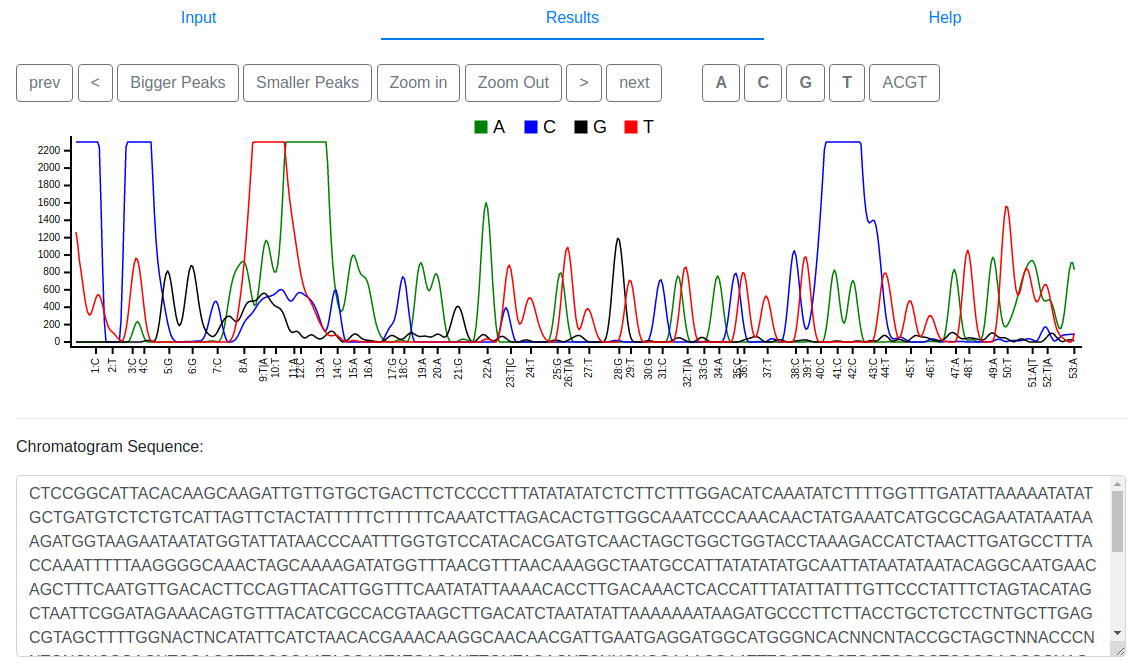

Tracy output page

# Sage

Sage aligns a Sanger chromatogram trace to a reference sequence. The input tab of Sage requires a chromatogram trace file in scf, abi, ab1 or ab format. Optionally, a left and right trimming size for this trace can be specified. We recommend using Teal for estimating such trim sizes. Sage also requires a reference sequence as input. This can be either a wildtype chromatogram, a small sequence in FASTA format or a large indexed reference genome.

Once these input requirements have been specified the Launch Analysis button kicks off tracy and the results are visualized in a separate browser tab. At the top, Sage shows the gapped trace signal with the gapped reference aligned below. Mismatches between reference and trace are colored red to highlight them for easy identification. Traces with secondary peaks are colored orange. The navigation buttons on the top left side can be used to move the actual view and zoom in or out. The buttons on the top right side highlight a base of choice. The chromatogram sequence and the reference sequence are provided below the trace signal.

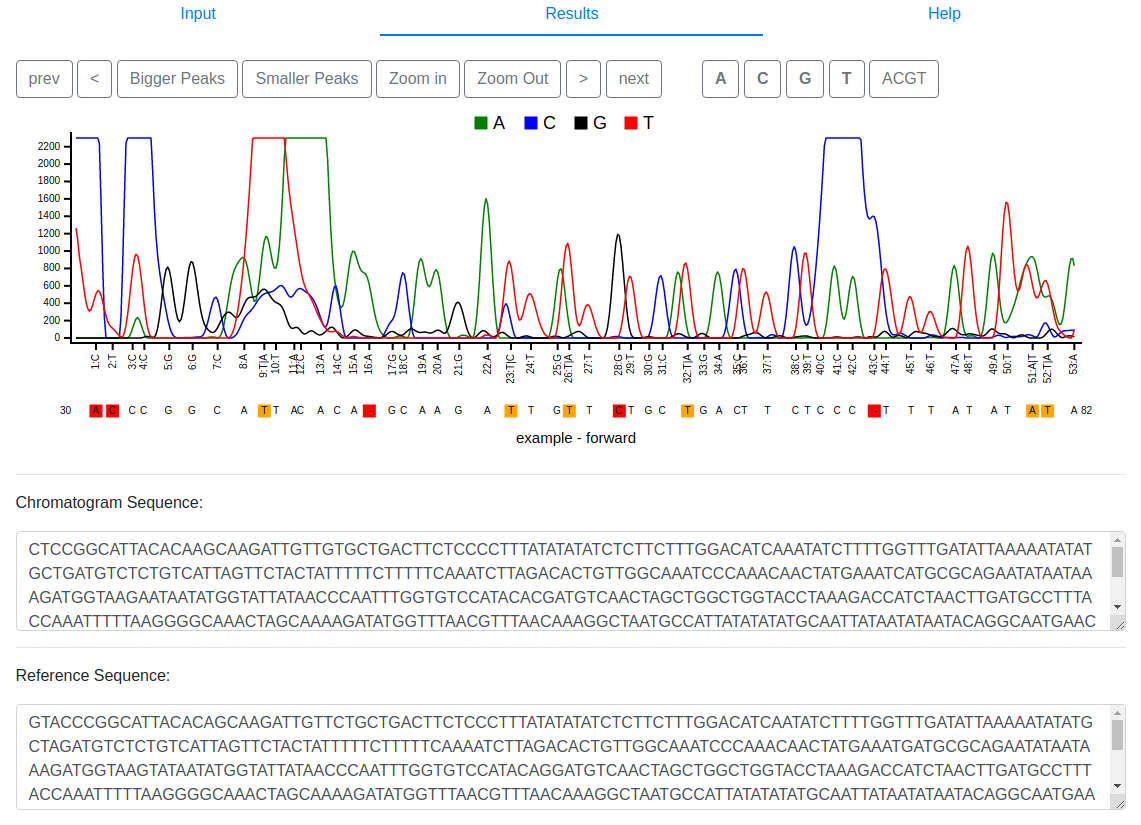

Sage output page

# Indigo

Indigo can be used to identify single-nucleotide variants (SNVs) and short insertions or deletions (InDels) in a Sanger Chromatogram trace. The application also supports deconvolution of heterozygous mutations: SNVs cause simple double peaks but heterozygous InDels cause a shift in the trace signal and Indigo can be used to separate the two overlapping alleles. The input screen of Indigo requires a chromatogram trace file in scf, abi, ab1 or ab format. Optionally, a left and right trimming size for this trace can be specified. We recommend using teal for estimating such trim sizes. Indigo also requires a reference sequence as input to identify variants. This can be either a wildtype chromatogram, a small sequence in FASTA format or a large indexed reference genome. Once these input requirements have been specified the launch analysis button kicks off tracy and the results are visualized in a separate browser tab. At the top, Indigo shows the actual trace signal. Below the trace viewer is an alignment of both deconvoluted alleles with respect to the reference and an alignment of both alleles against each other. Following the alignment, Indigo lists all identified variants including their rs identifier if it is a known polymorphism, a calling quality, estimated genotype and the basecalling position in the original trace. Please note that all variants are connected via hyperlinks to the original trace for easier browsing. At the very bottom, Indigo shows the decomposition plot. In case of heterozygous InDels you should observe two distinct minima in this plot. For instance, the provided example trace file contains a heterozygous 7bp deletion and thus, Indigo shows a minima for 0 and -7bp in the decomposition plot. All plots of Indigo can be saved in png format, zoomed and panned using the plotly buttons at the top of each chart.

# Pearl

Pearl is a tool to patch a DNA references with several Sanger trace files. It has two main applications: (Parts) of a reference sequence (fasta file, *.fa) can be sequenced and Pearl highlights the conflicts and mismatches between reference and the trace files. If no reference is provided, a consensus sequence is assembled and used instead.

The input tab of Perl requires several chromatogram trace files in scf, abi, ab1 or ab format. Pearl may use an optional reference sequence in FASTA format as input. The user may choose if secondary peaks should be treated as conflicts. Once these input requirements have been specified the Launch Analysis button kicks off tracy and the results are visualized in a separate browser tab.

In the results tab Pearl shows the color-coded consensus overview sequence on top:

light green - consensus: all traces agree on same base
red - mismatch: traces agree on different base then reference
orange - conflict: conflict, some traces suggest other bases
green - edited: the base was entered manually by the user
grey - no information: only reference data available

By design, Pearl focuses only on one location, the position given below the overview. A position can be selected by clicking at a position in the overview sequence, by changing the number in the position field or by navigating the trace windows.

The available traces at the given position can be reviewed by the user and manually set with the Set... buttons to a certain base. The Jump to next conflict button moves the position to the next conflict. Below the traces three sequences are given

the user sequence including all manually edited bases
the reference as uploaded
the consensus calculated by Pearl

Once all mismatches and conflicts are edited by the user, the sequence can be exported as FASTA. The entire dataset including the traces can be saved as a JSON file and uploaded in the result section later using the buttons at the top of the result tab.

Pearl output page

# Sabre

Sabre is a multiple sequence alignment viewer which allows you to view all trace sequences in parallel. An alignment in FASTA format has to provided via file upload or pasting into the provded text area. The default number of characters per alignment row is set to 80 by default, but this can be adjusted. Once everything is ready, press the Launch Analysis button. Note that as with all GEAR apps, we provide an example to view. For this, first press Load Example and then Launch Analysis.

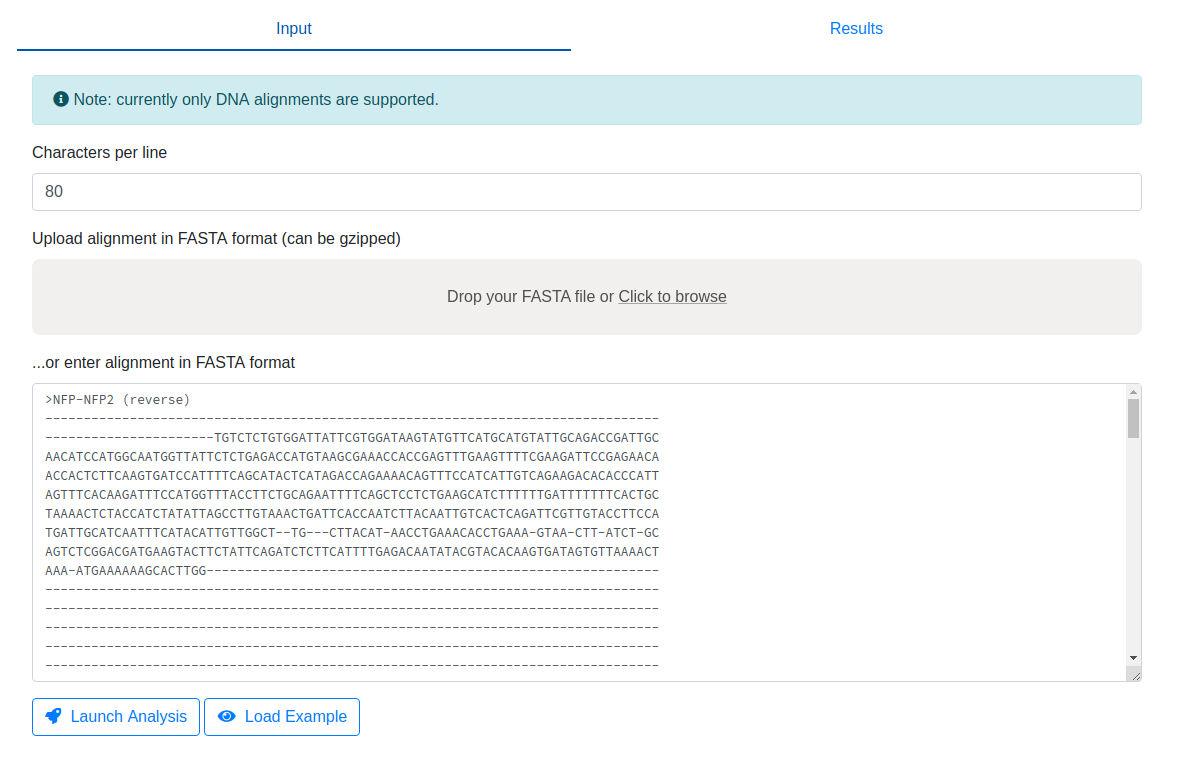

Sabre input page

You will now get redirected to the output page where you can browse the multiple sequence alignment of all traces. If you hover over individual bases, information about this particular position (both in the context of the corresponding sequence as well as the alignment) is shown on the right.

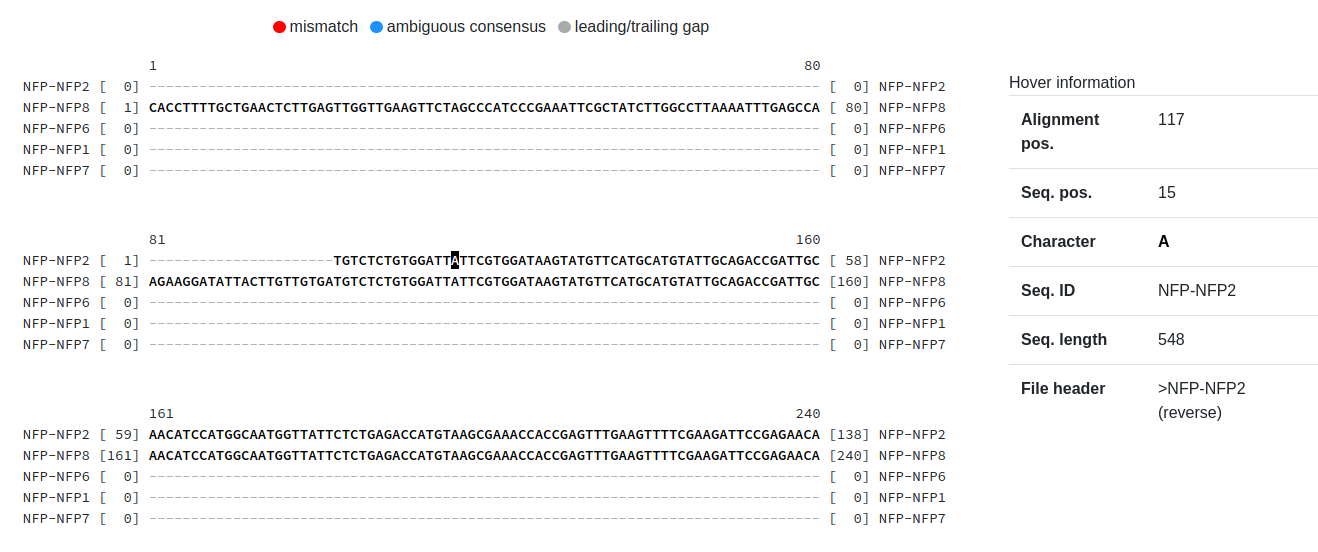

Sabre output page

# Wily-DNA-Editor

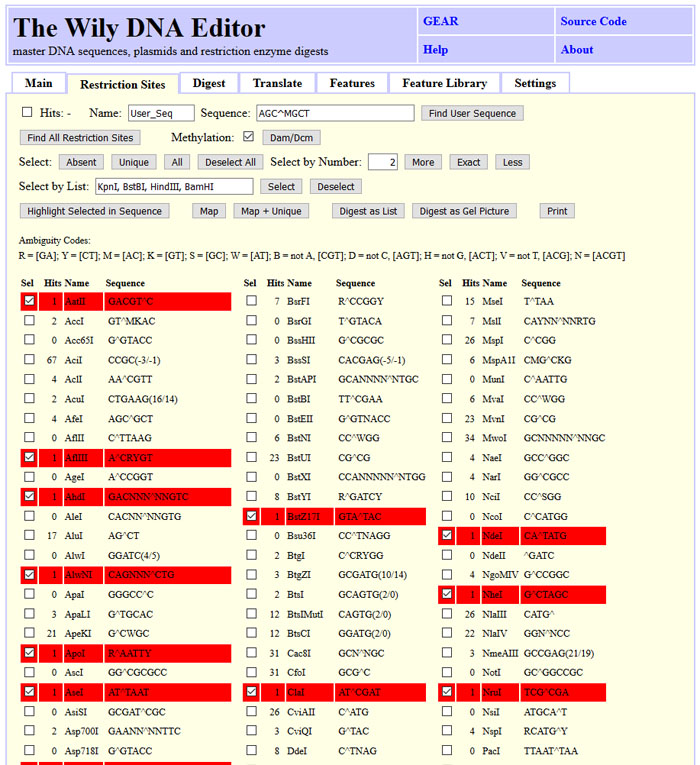

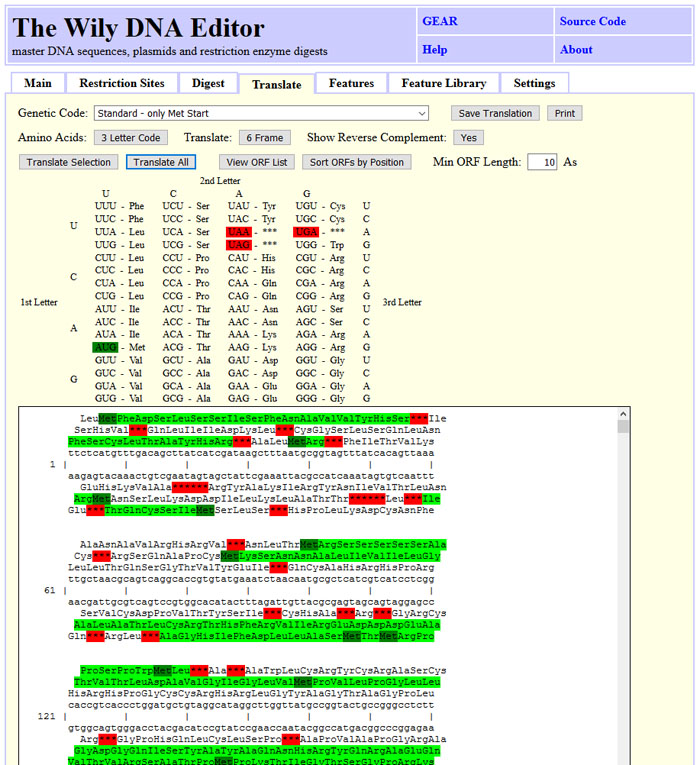

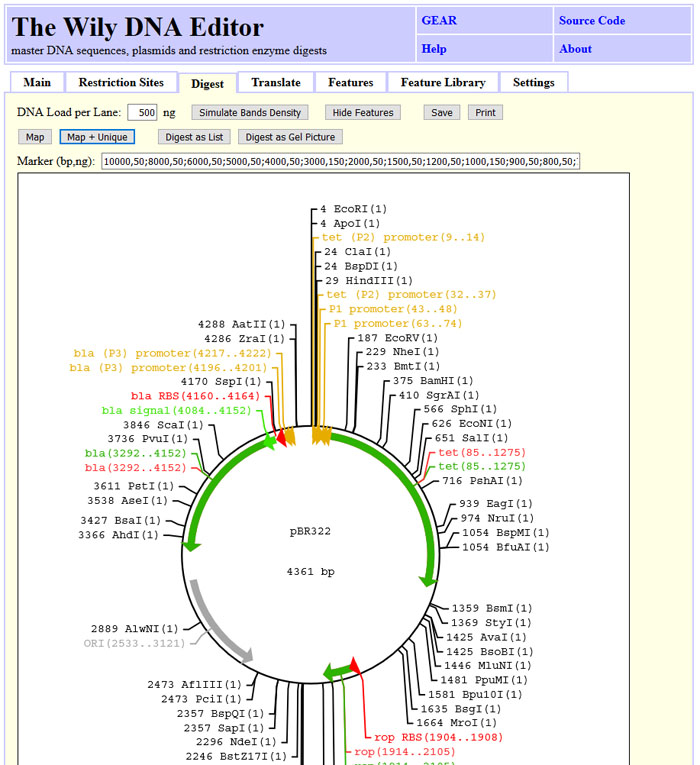

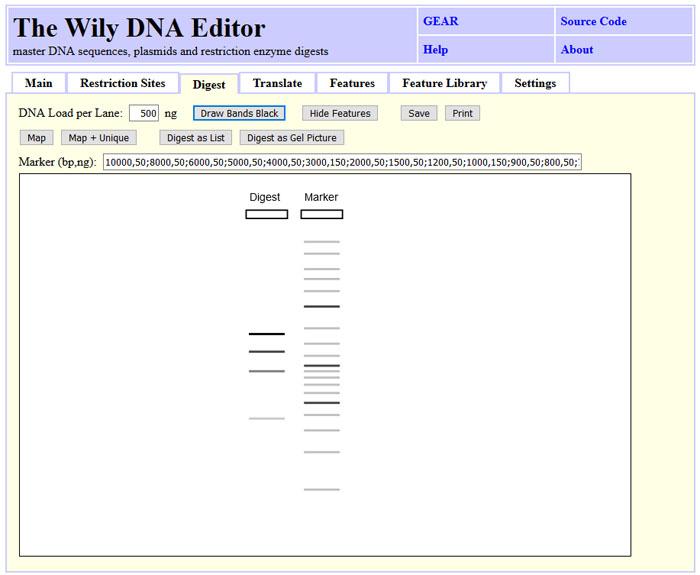

The Wily-DNA-Editor is a tool for plasmid assembly, reverse complementing DNA, translating to protein code and calculating restriction digests maps.

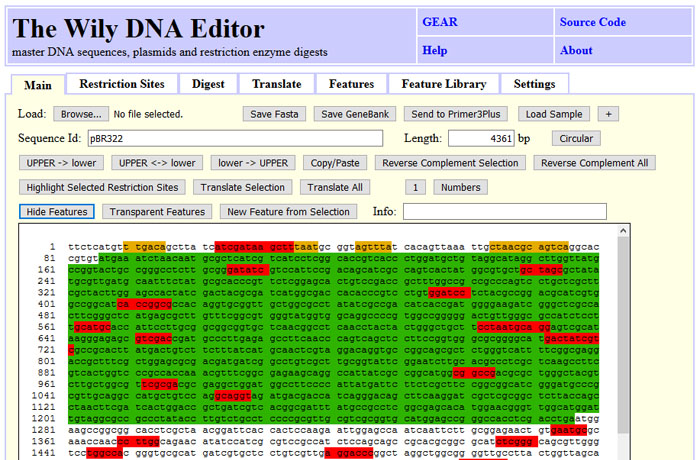

The screenshot below illustrates the basic DNA/RNA operations that Wily can perform, such as reverse-complementing DNA, removing non-IUPAC letters and changing upper to lower case and vice versa.

Wily main controls
